DranXperT®

Portable Power Logger + Sensor Logger + PQ Detector

Introducing DranXperT® – a new portable, low cost, power logger and PQ detector from Dranetz.
DranXperT is two products in one:

1. Accurate, 3 phase, bi-directional power/energy logger
2. PQ detector with 1/2 cycle resolution to identify and record common PQ issues such as sags/dips, swells, and interruptions, as well as changes in current

Mobirise

DranXperT measures all of the power parameters that you expect, such as W, VA, VAR, PF, Demand and Energy. Being a bidirectional power meter, direction of power flow is also measured for use in DER/alternative energy applications. Being a Dranetz, DranXperT’s measurements are second to none and also include PQ monitoring capabilities. PQ problems, such as sags/dips, swells, interruptions can be detected with IEC 61000-4-30 1/2 cycle resolution and harmonics are computed using the techniques of IEEE 519-2014/IEC 61000-4-7.

• Power/energy logger & PQ disturbance/event detector
• 3 voltage channels – Direct measurements up to 600Vrms, CATIII
• 4 current channels – 0.333Vrms current inputs. Compatible with Dranetz Flex, Hinged or any industry standard 0.333Vrms CT’s (UL listed)
• Measures: V, I, W (P), VA (S), VAR (Q), PF, Demand, Energy & much more
• PQ disturbance detector – Detect and records trends of RMS sags/dips, swells, current changes – IEC 61000-4-30 1/2 cycle methods
• Harmonic measurements & recording – Vthd, Ithd. Measurements using the methods of IEEE 519-2014/IEC 61000-4-7
• Web browser interface for real time meters, setup and data transfer
• Free, unlicensed Dran-View XP software for analysis & reporting
• 7 hr battery runtime – Best in class
• Automatic wiring verification – LED’s indicate wiring errors
• Ethernet, USB communications
• Modbus, Bacnet
• UL and CE Compliant

Voltage (3)
• Range: 90 to 600Vrms CATIII
• Accuracy: 90 Vrms to 600Vrms = ±0.1%, <90 Vrms = 0.5%
• Connections: 4 safety banana voltage inputs – 3 phase voltage and 1 neutral/reference

Current (4)
• Input: 0.333 Vrms full scale
• Accuracy: ±0.1% + probe
• Connections: BNC

Frequency
• Range: 50Hz = 45Hz to 55Hz, 60Hz = 55Hz to 65Hz
• Accuracy: 50/60Hz: ±0.001Hz

INSTRUMENT POWER
Line Power Supply
• Range: 90 to 264 VAC, 47 to 63Hz
• Consumption: 15W max
• Line cords/plugs: Localized – country dependent. US, EU, UK, Australia available


Internal Battery
• Rechargeable lithium Ion battery pack (UL recognized)
• Run time: 7 hours (typical)
• Charge time: 15 hours (typical)

ENCLOSURE & MECHANICAL
Mechanical

• Weight: 1.4 lb. (0.64Kg)
• Dimensions: 3.5” Width x 2.2” Height x 7.4” Length (6.4 cm x 8.9 cm x 18.8cm)
• Material: Aluminum
• Ingress protection rating: IP50 (vertical position)

Environmental
• Storage Temperature: 5 to 131 °F (-15 to +55 °C)
• Operating Temperature: 32 to 113 °F (0 to +45 °C)
• Humidity: 5% to 95% non-condensing
• Altitude: 6560 ft (2000m) maximum (per EN61010-1)


SAFETY
• UL

EN 61010-1
• Mains supply: Installation Category II, Pollution Degree 2
• Measurement Inputs: Installation Category III, Pollution Degree 2

CE
• EN 61326
• CISPR 11
• EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6

• Ethernet: 10
• USB: 2.0
• Protocols: Modbus, Bacnet

• Single phase
• Split phase
• 3 wire wye
• 3 wire delta – 2 probe
• 3 wire delta – 3 probe

ENERGY PARAMETERS (probe dependent)
• (True/Active) Energy (P): 0.1%
• Reactive Energy (Q): 0.1%
• Apparent Energy (S): 0.1%
• Fundamental Active Energy(P): 0.2%
• Fundamental Reactive Energy(Q): 0.2%
• Fundamental Apparent Energy (S): 0.2%
• Demand: 0.2%

POWER PARAMETERS (probe dependent)
• (True/Active) Power (P): 0.2%
• Reactive Power (Q): 0.2%
• Apparent Power (S: 0.2%
• Fundamental Active Power(P): 0.2%
• Fundamental Reactive Power (Q): 0.2%
• Fundamental Apparent Power (S): 0.2%
• Power Factor (PF): ±0.001%

POWER QUALITY
• Sag/dip, swell trigger threshold resolution: 1 cycle
• Periodic waveform snapshots: 1 cycle
• Vthd: ±5% for V ≥ 10% Vnom
• Ithd: ±5% for I ≥ 10% Inom + probe error

Optional CT's

Mobirise

Flex CT’s – ± 1% amplitude, ±1° phase error, 50/60Hz, 10%-100% of probe range

16″ Flex CT’s
FLEX-3000A-16: 300-3000A
FLEX-1500A-16: 150-1500A
FLEX-500A-16: 50-500A

24″ Flex CT’s
FLEX-3000A-24: 300-3000A
FLEX-1500A-24: 150-1500A
FLEX-500A-24: 50-500A

36″ Flex CT’s
FLEX-3000A-36: 300-3000A
FLEX-1500A-36: 150-1500A
FLEX-500A-36: 50-500A

Mobirise

Hinged CT’s – 600V CAT III, Freq range: 50 – 1Khz

CT-H-5A: 5A, 0.5%, hinged split core, 0.4″ window
CT-H-20A: 20A, 0.5%, hinged split core, 0.4″ window
CT-H-50A: 50A, 0.5%, hinged split core, 0.4″ window
CT-H-100A: 100A, 0.5%, hinged split core, 1.0″ window
CT-H-600A: 600A, 0.5%, hinged split core, 1.38″ window

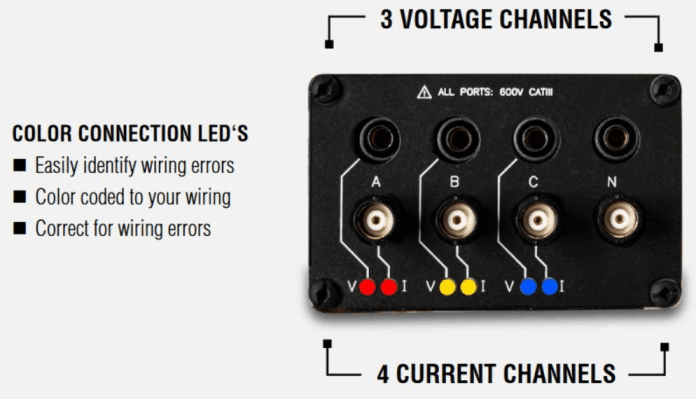

DranXperT - Voltage and Current Channels
DranXperT with Hinged CT's
DranXperT with Flex CT's
Easily used in cellular applications
